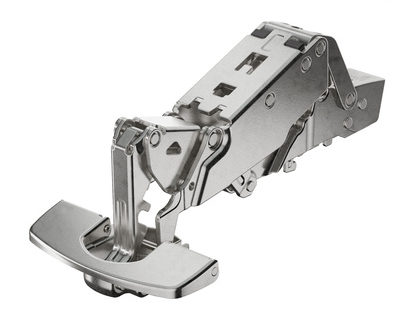

Hettich 165º Zero Protrusion Soft Close F/O - Fix Fast - Blum Pattern
Hettich 165º Zero Protrusion Soft Close F/O - Fix Fast - Blum Pattern
Hettich 165º Zero Protrusion Soft Close F/O - Fix Fast - Blum Pattern
Hettich 165º Zero Protrusion Soft Close F/O - Fix Fast - Blum Pattern
Hettich 165º Zero Protrusion Soft Close F/O - Fix Fast - Blum Pattern
Hettich 165º Zero Protrusion Soft Close F/O - Fix Fast - Blum Pattern
SKU: 9099563
View related products
Brand
Hettich
Closing Type
Soft-Close
Opening Degree
165º "Zero Protrusion"
Hinge Mounting
Fix Fast
Material / Finishes
Zinc / Steel
Overlay
Full Overlay
  • Sensys wide angle hinge, with zero protrusion
  • With integrated Silent System, with self closing feature (Sensys 8657i)
  • Quality classification under EN 15570, Level 3
  • Opening angle 165°
  • For door thickness 15 - 32 mm
  • Door mounting option overlay

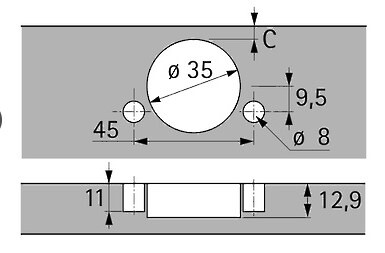

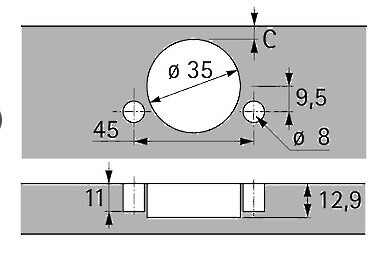

  • Drilling pattern TB 45 x 9,5 mm
  • Cup depth 11.6 mm
  • Installation Fix fast assembly
  • Integrated overlay adjustment +2 mm / -2 mm
  • Integrated depth adjustment +3 mm / -2 mm
  • Height adjustment at mounting plate
  • Steel / die-cast zinc nickel plated
  • Box Qty. 50
MAIN PRODUCT FEATURES
Suggested Retail Price:
$ 13.02

Please Login to view your pricing
