Hettich Pie Cut Lazy Susan - Dowel - Blum Pattern
Hettich Pie Cut Lazy Susan - Dowel - Blum Pattern
Hettich Pie Cut Lazy Susan - Dowel - Blum Pattern
Hettich Pie Cut Lazy Susan - Dowel - Blum Pattern
Hettich Pie Cut Lazy Susan - Dowel - Blum Pattern
Hettich Pie Cut Lazy Susan - Dowel - Blum Pattern
SKU: 9090116
View related products
Brand
Hettich
Closing Type
Self / Regular-Close
Hinge Mounting
Knock-in Dowel
Material / Finishes
Zinc / Steel
Overlay
Pie Corner

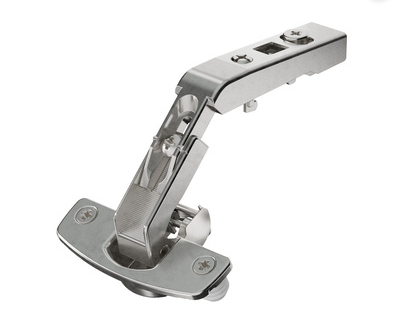

  • Hinge for corner cabinet folding doors
  • Without self closing feature (Intermat 9930)
  • Quality classification under EN 15570, Level 2
  • Opening angle 50° / 65°
  • For door thickness 15 - 21 mm
  • Door mounting option overlay

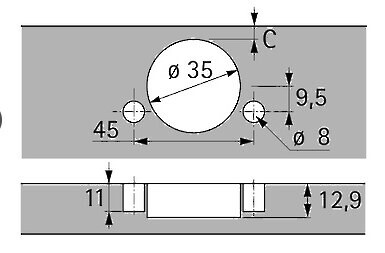

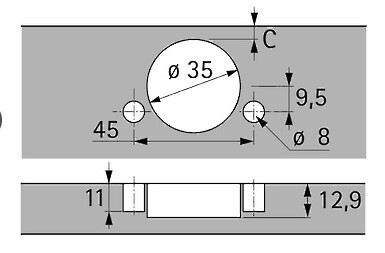

  • Drilling pattern TB 45 x 9,5 mm
  • Cup depth 12.8 mm
  • Installation for pressing in
  • Integrated diagonal adjustment +9.5 mm / -9.5 mm
  • Integrated overlay adjustment, see sketch
  • Integrated depth adjustment, see sketch
  • Height adjustment at mounting plate
  • Steel / die-cast zinc nickel plated
  • Box Qty. 50
MAIN PRODUCT FEATURES
Suggested Retail Price:
$ 8.40

Please Login to view your pricing
