Soft-Close "D" Wind Lift System Kit
Application Type
Flap Door
Door Height Range
8-5/8" to 24" (220mm to 610mm)
Door Weight

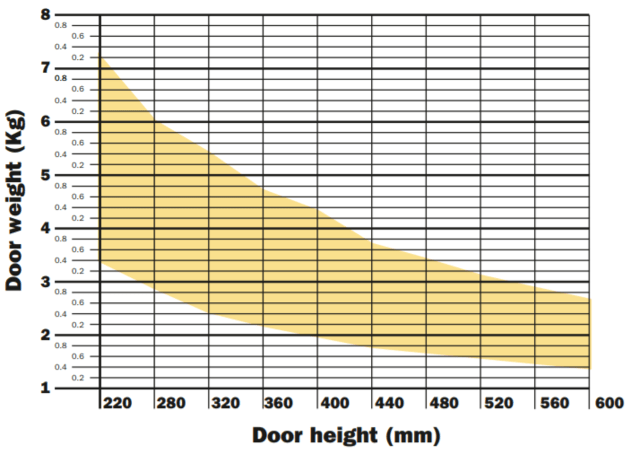

1.4kg to 7.2kg (3.1lbs to 15.9lbs) Include The Weight of The Decorative Hardware
Mounting Type
Side Mount
Opening / Closing Type
Soft-Close
Opening Degree
85° to 110°

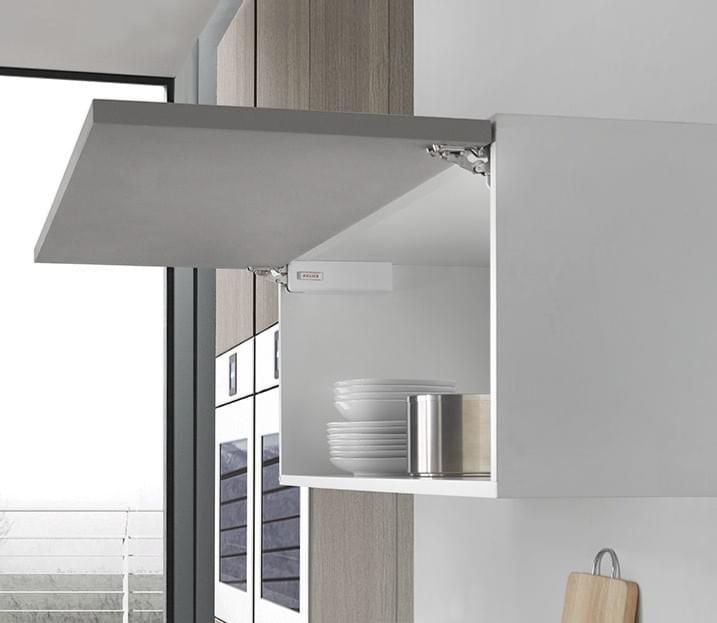

The Wind lift system is characterized by compactness and elegant design. Its movement is smooth and perfectly controlled. Wind is small and unobtrusive, enabling the maximum utilization of cabinet internal space.

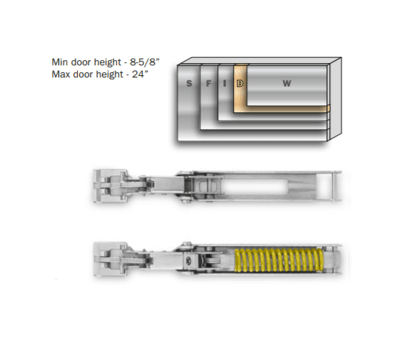

• (1) "D" Wind Kit (2 Wind - Left & Right Bracket)
• Min. door height 8-5/8"
• Max. door height 24"
• 1.4kg to 7.2kg (3.1lbs to 15.9lbs) Include the weight of the decorative hardware - SEE DOWNLOADS & LINKS FOR MORE INFORMATION
• Premounted reduction clip included on bracket arm which reduces opening to 85° and is removable for opening degree up to 110°
• Soft-close

COVER CAPS SOLD SEPARATELY



Opening / Closing Type :
MAIN PRODUCT FEATURES
Suggested Retail Price:
$ 136.36

Please Login to view your pricing
