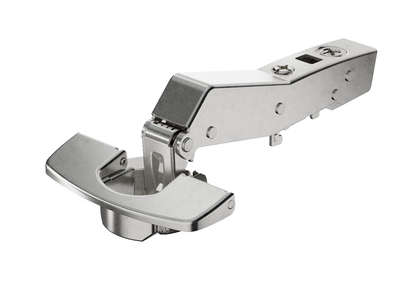

Hettich 45° Angle Hinge Soft Close - Fix Fast - Hettich Pattern
Hettich 45° Angle Hinge Soft Close - Fix Fast - Hettich Pattern
Hettich 45° Angle Hinge Soft Close - Fix Fast - Hettich Pattern
Hettich 45° Angle Hinge Soft Close - Fix Fast - Hettich Pattern
Hettich 45° Angle Hinge Soft Close - Fix Fast - Hettich Pattern
SKU: 9088073
View related products
Brand
Hettich
Closing Type
Soft-Close
Opening Degree
95°
Hinge Mounting
Fix Fast
Material / Finishes
Zinc / Steel
  • Sensys angle hinge W45
  • With integrated Silent System, with self closing feature (Sensys 8639i W45)
  • Quality classification under EN 15570, Level 3
  • Opening angle 95°
  • For door thickness 15 - 28 mm
  • Door mounting option overlay
  • Drilling pattern TH 52 x 5,5 mm, TS 48 x 6 mm
  • Cup depth 12.8 mm
  • Installation Fix fast assembly
  • Integrated overlay adjustment +2 mm / -2 mm
  • Integrated depth adjustment +3 mm / -2 mm
  • Height adjustment at mounting plate
  • steel nickel plated
  • Box Qty. 50
MAIN PRODUCT FEATURES
Suggested Retail Price:
$ 15.26

Please Login to view your pricing
