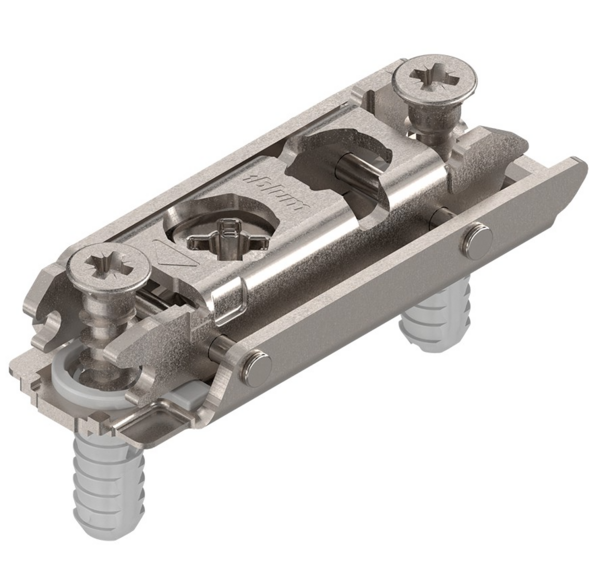

Blum In-line Mounting Plate 0mm - 5mm Expando
Blum In-line Mounting Plate 0mm - 5mm Expando
SKU: 177H3100E
Plates Height / Reinforcement
0mm
Plates Mounting
Expansion Dowels
Material / Finishes
Nickel
  • Compatible hinge: CLIP top BLUMOTION/CLIP top/CLIP
  • Compatible lift: AVENTOS HK-S/AVENTOS HF (2 required per mechanism set)
  • Shape of mounting plate: Straight
  • Spacing: 0mm for 18mm cabinet sides
  • Steel material
  • Nickel plated finish
  • Required fixings: EXPANDO Ø5mm (pre-mounted screws with split dowels)
  • Mounting plates height adjustment: With cam
  • Height adjustment: +/- 2mm
  • Item package: 1 piece
  • Cabinet front edge to first fixing position: 20mm
  • Diameter of fixing holes: 5mm
  • Drilling depth of fixing holes: 11.5mm
MAIN PRODUCT FEATURES
Suggested Retail Price:
$ 2.11
